versa networks VNX100 Exam Questions
Questions for the VNX100 were updated on : Nov 21 ,2025
Page 1 out of 4. Viewing questions 1-15 out of 60
Question 1
Which statement about the function of an SD-WAN Forwarding Profile is true?
- A. It defines the criteria for custom applications and services.
- B. It defines the criteria for matching traffic.
- C. It defines the link-performance parameters.
- D. It defines which of the WAN links should be selected to forward the outgoing traffic.
Answer:
D
Question 2

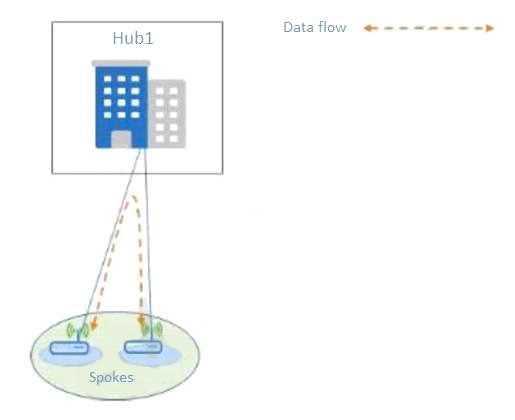

Review the exhibit.
Which hub topology is shown in the exhibit?
- A. spoke-to-spoke only
- B. spoke-to-spoke via hub
- C. spoke-to-spoke direct
- D. spoke-hub-hub-spoke
Answer:
B
Question 3
Which two statements about Versa Analytics are true? (Choose two.)
- A. Versa Analytics provides the ability to configure logging parameters on SD-WAN CPEs.
- B. Versa Analytics provides REST APIs for northbound integration with third-party tools.
- C. Versa Analytics provides centralized logging information about the SD-WAN environment.
- D. Versa Analytics provides real-time traffic monitoring dashboards.
Answer:
B, D
Question 4
Which statement describes a Versa Workflow?
- A. A Versa Workflow is another name for a template in Versa Director.
- B. A Versa Workflow can be used to configure routing policies on third-party devices.
- C. A Versa Workflow is a process that creates or modifies an object in Versa Director.
- D. A Versa Workflow is the process used to order services from Versa Networks.
Answer:
D
Question 5
Which two statements about a Versa Secure SD-WAN deployment are true? (Choose two.)
- A. By default, all data traffic is forwarded on IPSec tunnels.
- B. By default, all control traffic is forwarded on IPSec tunnels.
- C. By default, all data traffic is forwarded on unencrypted tunnels.
- D. By default, all control traffic is forwarded on unencrypted tunnels.
Answer:
B, C
Question 6

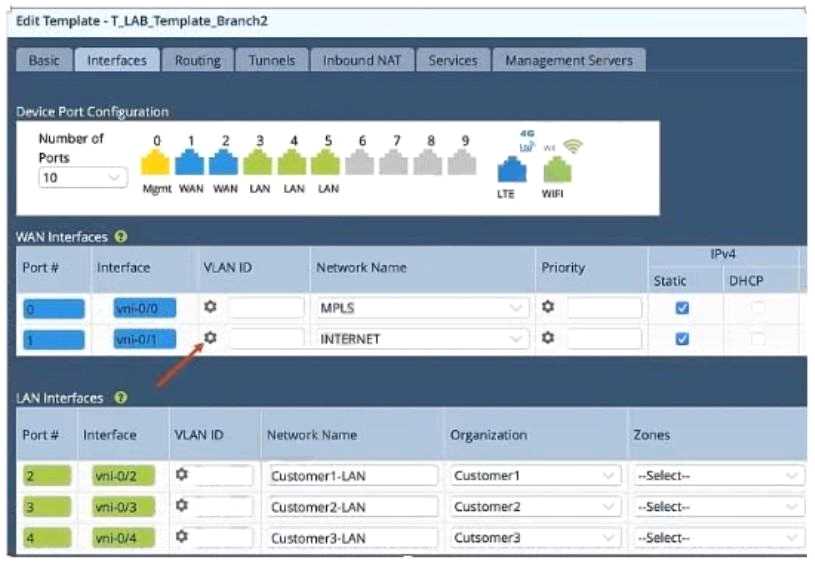

Review the exhibit.
Referring to the gear icon shown in the exhibit, when would you select the gear icon for a VLAN in a
template workflow?
- A. when all the devices sharing this workflow template have the default VLAN on the vni-0/1 interface
- B. when all the devices sharing this workflow template have the same VLAN on the vni-0/1 interface
- C. when all the devices sharing this workflow template have different VLANs on the vni-0/1 interface
- D. when all the devices sharing this workflow template have more than one VLAN on the vni-0/1 interface
Answer:
C
Question 7
Which two statements about the Versa Secure SD-WAN solution are true? (Choose two.)
- A. Versa Director is used for end-user data traffic transport.
- B. Versa Controller provides historical usage reports.
- C. Versa CPEs are activated using Zero Touch Provisioning.
- D. All components support high availability.
Answer:
C, D
Question 8
Your organization requires any new CPE deployment to have Versa Operating System version 20.2.2.
In this scenario, how would you accomplish this task?
- A. Select preferred software version to 20.2.2 in the Common Template.
- B. Select preferred software version to 20.2.2 in the Template Workflow.
- C. Select preferred software version to 20.2.2 in the Device Bind Data.
- D. Select preferred software version to 20.2.2 in the Device Group.
Answer:
B
Question 9
When onboarding a CPE using ZTP, the device shows up in the unknown device list in the Versa
Director Inventory.
In this scenario, what caused this problem?
- A. The template workflow configuration does not have the correct serial number of the CPE defined.
- B. A non-Versa-branded appliance is used as the CPE.
- C. The device workflow configuration does not have the correct serial number of the CPE defined.
- D. The CPE is installed as a virtual machine.
Answer:
A
Question 10
What are two features of the Versa Secure SD-WAN? (Choose two.)
- A. open programming language complier
- B. multitenancy and Role Based Access Control (RBAC)
- C. on demand resource pooling
- D. single-pane-of-glass management with embedded analytics
Answer:
B, D
Question 11
In a Post-staging Template, device-specific information such as WAN IP addresses, LAN subnets, and
route ID are referred to as what?
- A. Data Store
- B. Bind Data
- C. Staging Template
- D. Device Group
Answer:
B
Question 12
Which two methods are used to provision a Versa SD-WAN CPE? (Choose two.)
- A. PXE boot provisioning
- B. URL-based provisioning
- C. Script-based provisioning
- D. USB-based provisioning
Answer:
B, C
Question 13
By default, which routing instance, in a remote Versa branch, has a route to reach the Versa head-end
components?
- A. Internet VR
- B. LAN VR
- C. Control VR
- D. Global instance
Answer:
C
Question 14
Which three protocols are able to be configured using Versa Workflows? (Choose three.)
- A. BGP
- B. EIGRP
- C. IS-IS
- D. OSPF
- E. Static
Answer:
A, D, E
Question 15
What are two ways that a service template would be used? (Choose two.)
- A. as a post-staging template for multiple CPEs
- B. to apply an identical QoS configuration to multiple CPEs
- C. to apply a non-identical service configuration to multiple CPEs
- D. to share an identical service configuration across tenants
Answer:
B, D
