Question 1

What is a capability provided by the Cisco Expressway Series?

• A. voice and video transcoding
• B. endpoint registration
• C. voice and video conferencing
• D. Intercluster extension mobility

Question 2

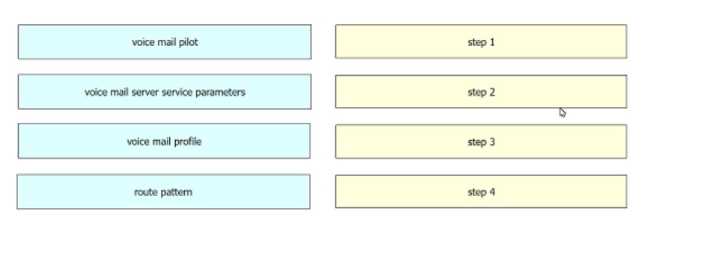

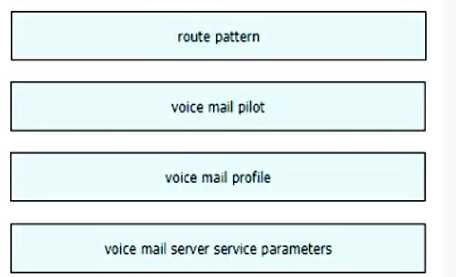

DRAG DROP
An engineer must configure a SIP integration between cisco UCM and cisco Unity Connection. These
components are configured already:

Drag and drop the components from the left into the order they must be configured on the right.

Question 3

An engineer is troubleshooting a Primary Rate Interface that fails to come up on a H.323 production
voice gateway. Layer 1 and Layer 2 configurations were validated successfully Which Cisco IOS
command must be run to debug the issue with the least impact on network performance?

• A. debug vtsp session
• B. debug ccsip messages
• C. debug all
• D. debug isdn q931

Question 4

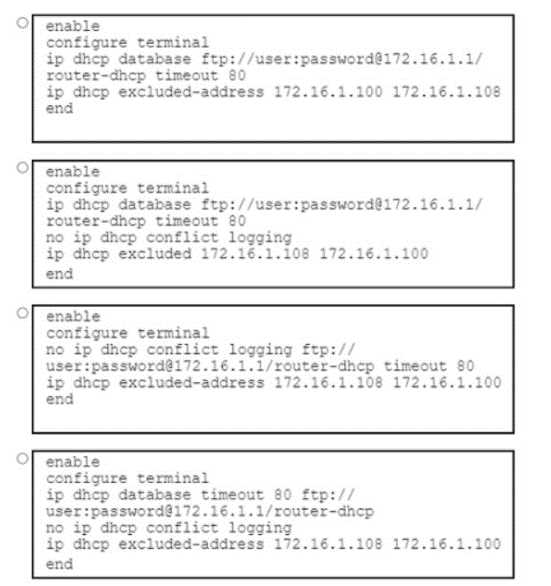

An engineer must configure a DHCP server to save automatic bindings on a remote host that has an
IP address of 172.16.1.1. The IP address range of 172.16.1.100 to 172.16.1.108 must be blocked from
the DHCP server. Which set of commands must the engineer run?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Question 5

A DTMF mismatch is occurring between an MGCP gateway registered FXS port and a Cisco Unified
communications Manager SIP trunk. Which media resource can be leveraged to interwork this
mismatch?

• A. Media Termination point
• B. Conference Bridge
• C. Annunciator
• D. Trust relay point

Question 6

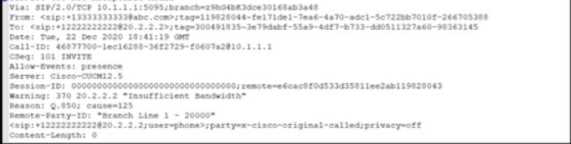

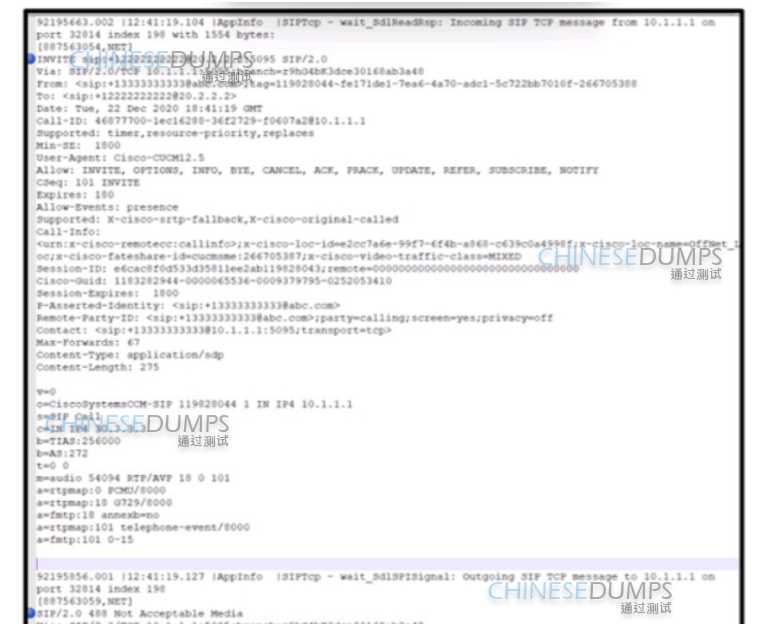

Refer to the exhibit.


Refer to the exhibit. What is the reason for this call failure?

• A. The device pool contains more call processing agents in the CMG group than tie endpoint can support
• B. MRGL contains more media groups than the endpoint can support.
• C. The hunt group contains more devices than the endpoint can support
• D. The available location bandwidth between sites is exceeded

Question 7

What are two differences between media flow-around and media flow-through on cisco unified
Border element? (Choose two.)

• A. When using media flow-around, the can signaling goes through the Cisco Unified Border Element, but media is not passed through It.
• B. When using media flow-through, call signaling goes through the Cisco Unified Border Element, but media does not
• C. When using media flow-through, the call signaling and media are passed through the Cisco Unified Border Element
• D. When using media flow-through, the call signaling goes through the Cisco Unified Border Element, but media is not passed through When using media flow-around, both call signaling and media do not go through the Cisco Unified Border Element

Question 8

How many dial patterns can a Webex Calling dial plan support?

• A. 1,000
• B. 2,000
• C. 10,000
• D. 12,000

Question 9

An engineer must configure a new route pattern. When a user dials 9-555-555-5555, only the last 10
digits must be sent to the gateway. All transformations must be done at the route pattern level.
Which route pattern must the engineer use?
A.
Route pattern: 9.@
Called party transformation discard digits: PreDot
B.
Route pattern: 9.(2-9].. [2-9]......
Called party transformation discard digits: Nine
C.
Route pattern: 9.(5-5] [5-5]...
Called party transformation discard digits: PreDot
D.
Route pattern: 9T
Called party transformation discard digits: Nine

Question 10

An engineer with troubleshoots poor voice quality on multiple calls. After looking at packet captures,
the engineer notices high levels of jitter. Which two areas does the engineer check to prevent jitter?
(Choose two.)

• A. Voice packets are classified and marked
• B. All devices use wired connections instead of wireless connections
• C. The network meets bandwidth requirements
• D. Cisco UBE manages voice traffic, not data traffic
• E. MTP is enable on the sip trunk to cisco Unified Border Elemnet

Question 11

What an advantage of using of the SIP OAuth mode in Cisco Jabber?

• A. secure signaling and media
• B. authentication of SIP messages
• C. reduced authentication times
• D. usage of self-signed certificates

Question 12

A network engineer must convert an inbound number 14085551111 when it reaches Cisco UCM and
then converts it to an internal extension 3022, so it can ring to a specific desk. Which action meets
this requirement?

• A. Create a route group and route list and assign it to the translation pattern.
• B. Create translation pattern 14085551111, called party transform mask 3022.
• C. Change the partition and calling search space on the DID for the specific desk.
• D. Create a route pattern 9.1XXXXXXXXXX and assign it to the trunk.

Question 13

What is the purpose of Mobile and Remote Access with Cisco Jabber in the cisco UCM?

• A. to allow Cisco Jabber to register with Cisco UCM without trie use of a VPN from outside the corporate network
• B. to allow Cisco Jabber to register with Cisco UCM via a remote access VPN from a branch office
• C. to allow Cisco Jabber to register with Cisco UCM via a remote access VPN from outside the corporate network
• D. to allow Cisco Jabber to register with Cisco UCM via a site-to-srte VPN from a branch office ANSWER: A

Question 14

What is a characteristic of Cisco UCM translation patterns?

• A. Configure routing based on the calling party number for the next hop.
• B. When there is a match, the call is routed to the specified destination in the translation pattern.
• C. When a dialed number is manipulated in a translation pattern, the dialed number is written to the call detail record.
• D. Never configure a partition for a translation pattern.

Question 15

After an administrator installs the Cisco jabber Client, it fails to register with the cisco UCM server.
Which two actions should be taken to troubleshoot this problem? (Choose two.)

• A. Verify the installation of the LMHOST file on the PC.
• B. Verify the configuration of the DNS SRV record.
• C. Verify corporate firewall settings for client connections.
• D. Verify Layer 3 connectivity on the gateway.
• E. Reboot the Cisco Unified Border Element Gateway.
