a10 networks A10 SYSTEM ADMINISTRATION Exam Questions

Questions for the A10 SYSTEM ADMINISTRATION were updated on : Nov 21 ,2025

Page 1 out of 2. Viewing questions 1-15 out of 30

Question 1

You are planning an Active-Active-Active VRRP-A three-device deployment that, upon failover of any
device, distributes the load from a single device to both standby devices simultaneously. How many
VRIDs are required?

  • A. 2
  • B. VRID Default is enough
  • C. 6
  • D. 5
  • E. 3
  • F. 4
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
F
50%

Discussions
vote your answer:
A
B
C
D
E
F
0 / 1000

Question 2

Which three items does aXAPI require to configure an ACOS object (such as an SLB object)? (Choose
three.)

  • A. Endpoint with parameters
  • B. Authorization signature
  • C. Device’s VIP URL
  • D. Device’s serial number
  • E. Device’s management/data IP
  • F. Encrypted connection to device
Answer:

B, E, F

User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
F
50%

Discussions
vote your answer:
A
B
C
D
E
F
0 / 1000

Question 3

Which statement is true about the requirements for ACOS devices that are part of an aVCS cluster?

  • A. Any Thunder series devices can be clustered together in an aVCS set
  • B. Devices must be the same model but can have different optional hardware cards
  • C. Devices must be the same model and have the same optional hardware cards
Answer:

C

User Votes:
A
50%
B
50%
C
50%

Discussions
vote your answer:
A
B
C
0 / 1000

Question 4

Which commands display the ACOS device serial number? (Choose two.)

  • A. show system
  • B. show hardware
  • C. show environment
  • D. show serial
  • E. show version
Answer:

B, E

User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%

Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 5

Which statement correctly describes the result of the following commands?
ACOS(config)#logging host 192.168.216.45
ACOs(config)#end
ACOS#active-partition p1
Currently active partition: p1
ACOS[p1](config)#logging host 2.2.2.2
ACOS[p1](config)#logging host partition shared

  • A. System logs generated from partition “p1” will be sent to logging server “2.2.2.2”, and only warning severity log messages are sent to the shared logging server’s “192.168.216.45”.
  • B. System logs generated from partition “p1” will be sent to logging server “2.2.2.2”, as well as to the shared logging server’s “192.168.216.45”.
  • C. System logs generated from partition “p1” will be sent to logging server “2.2.2.2”.
  • D. System logs generated from partition “p1” will be sent to the shared logging server’s “192.168.216.45”.
Answer:

B

User Votes:
A
50%
B
50%
C
50%
D
50%

Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 6

Describe VRRP-A (high availability) and aVCS interoperability.

  • A. Enabling VRRP-A requires that aVCS is operational
  • B. Enabling aVCS require VRRP-A is operational
  • C. VRRP-A and aVCS operate independently of each other
  • D. VRRP-A and aVCS must function simultaneously
Answer:

D

User Votes:
A
50%
B
50%
C
50%
D
50%

Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 7

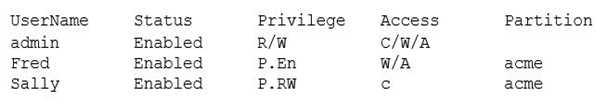

The “show admin” displays the following output. Select the correct statements concerning admins on
this device. (Choose two.)

  • A. Sally is a read write administrator on the Acme partition.
  • B. Fred is a read write administrator on the Acme partition.
  • C. Fred can only log in with the web or api client.
  • D. User admin has no access to the acme partition.
  • E. Fred can run aXAPI scripts against the acme partition using his login information.
  • F. Sally can only log in with the web client.
  • G. Sally is a read write administrator on the shared partition.
Answer:

A, C

User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
F
50%
G
50%

Discussions
vote your answer:
A
B
C
D
E
F
G
0 / 1000

Question 8

What do we know about the state of the system from the CLI prompt? (Choose two.)
A1-vMaster[1/1][Helium2]#

  • A. There is only 1 member in this A10 Virtual Chassis.
  • B. There are at least 2 private partitions configured.
  • C. aVCS has been configured, and this host is part of aVCS set 1.
  • D. aVCS has been configured, and this host is part of aVCS set 1/1.
  • E. Application Delivery Partitions have been configured.
Answer:

D, E

User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%

Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 9

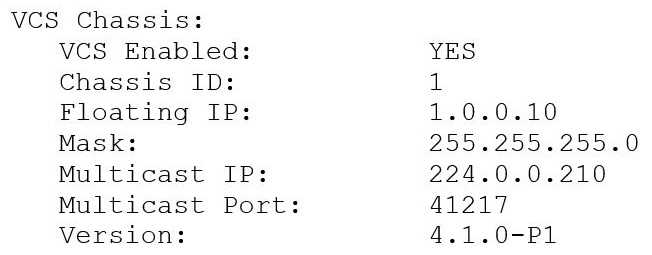

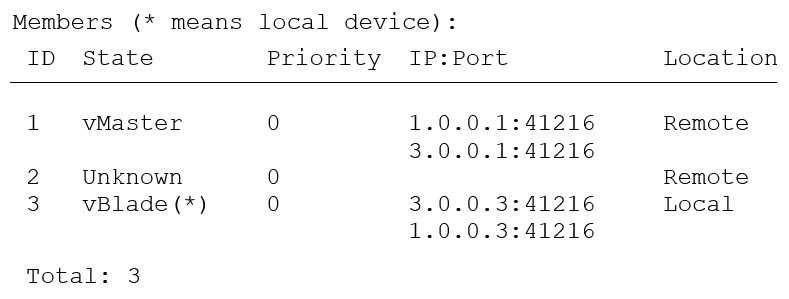

Given the following “show vcs summary” output, which statements are true about the virtual chassis
set? (Choose three.)


  • A. Three devices were configured as part of the virtual chassis.
  • B. The command was run from the aVCS vMaster.
  • C. The aVCS vMaster of the group can always be accessed at IP Address 1.0.0.1.
  • D. The aVCS vMaster of the set can always be accessed at IP Address 224.0.0.210.
  • E. The command was run from device 3 of the set.
  • F. This is aVCS set-id 1.
Answer:

A, E, F

User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
F
50%

Discussions
vote your answer:
A
B
C
D
E
F
0 / 1000

Question 10

Which statement describes the following configuration?
ACOS(config)# smtp 10.10.10.5
ACOS(config)# logging email emergency
ACOS(config)# logging email-address [email protected]

  • A. Send logs related to 10.10.10.5 to email address [email protected].
  • B. The ACOS device is configured to send log messages by email.
  • C. The ACOS administrator’s email is [email protected] where SNMP traps will be sent.
  • D. The ACOS device is configured to act as SMTP server to forward logging messages for other devices.
Answer:

B

User Votes:
A
50%
B
50%
C
50%
D
50%

Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 11

Which of the following statements are true about Application Delivery Partitions?
1) The same virtual ethernet interface can be used by multiple private partitions
2) An untagged ethernet interface is visible only within the partition in which it is configured

  • A. 1 is true; 2 is false
  • B. 1 is false; 2 is true
  • C. 1 and 2 are both true
  • D. 1 and 2 are both false
Answer:

B

User Votes:
A
50%
B
50%
C
50%
D
50%

Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 12

Select the statement that describes aXAPI authentication and authorization requirements:

  • A. aXAPI requires that users are assigned to the “aXAPI” role before they can execute a script.
  • B. aXAPI is subject to the same permissions requirements as the CLI and GUI.
  • C. aXAPI has special permissions that differ from CLI and GUI permissions.
  • D. aXAPI is subject to authorization but not authentication requirements.
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%

Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 13

When private partitions are created on a device where VRRP-A is enabled, which statement is true?

  • A. No VRIDs are configured on a private partition until explicitly configured.
  • B. VRID 0 is configured with settings identical to VRID 0 on the shared partition.
  • C. All VRIDs on the shared partition are replicated on the private partitions.
  • D. VRID 0 is configured with its default settings.
  • E. VRRP-A is not available on private partitions.
Answer:

D

User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%

Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 14

How are aVCS changes that are performed on the vMaster pushed to the vBlades?

  • A. HA Sync needs to be done
  • B. VRRP-A should be failed over
  • C. Automatically
  • D. aVCS reload has to be performed
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%

Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 15

In a VRRP-A topology that contains four devices, select the number of devices on which a single VRID
can be simultaneously active?

  • A. 1
  • B. 2
  • C. 3
  • D. 4
Answer:

A

User Votes:
A
50%
B
50%
C
50%
D
50%

Discussions
vote your answer:
A
B
C
D
0 / 1000
